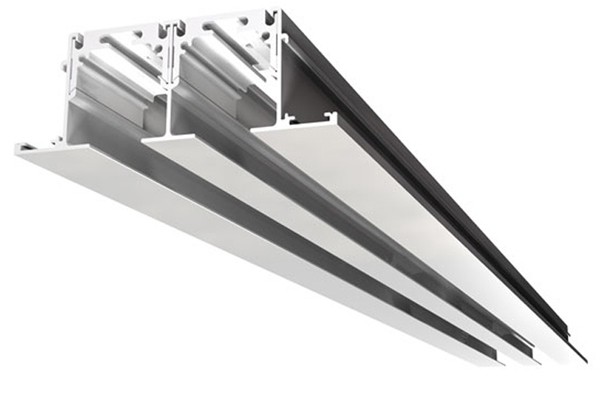

The beautiful face of a modern HVAC system is often a Linear Slot Diffuser.
They work in both residential and commercial settings, and
are used for both supply and return air.

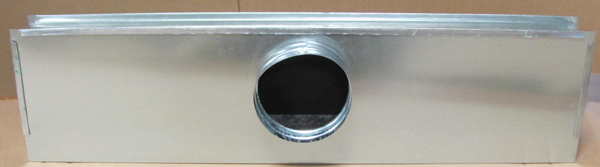

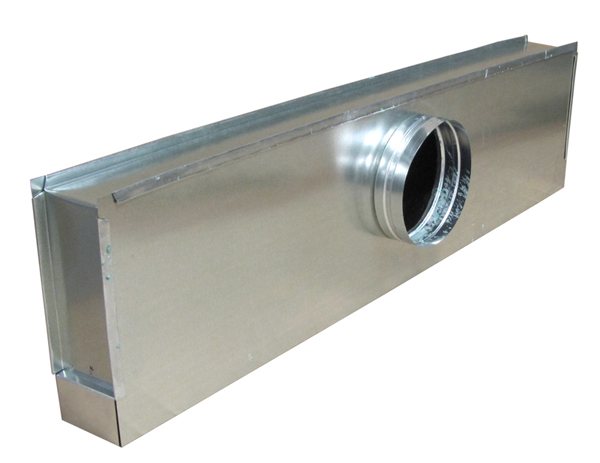

The supply side diffusers require insulated plenum boxes to deliver the air,
and in the sequence of construction they are installed well before the linear diffuser.

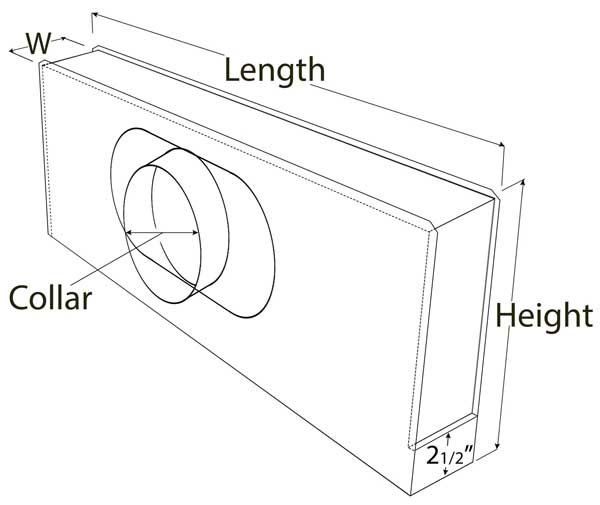

These plenums can be custom fabricated
to meet most any insulation requirement and delivery schedule.

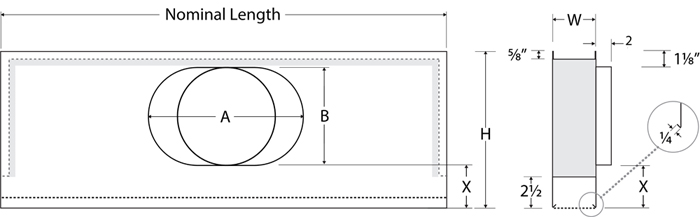

These HVAC plenum boxes can also be made to fit most ceiling 'T Bar' grid systems.
You want to use this plenum for your linear diffusers because:
These air devices are made specifically for use with
the fabulous and beautiful linear slot diffusers of
Nailor Industries, Titus, Kruger, Hart & Cooley, Price, Air Mate, Reliable,
Metal Aire, Tuttle & Bailey, Anemostat, Pottorff and Carnes.

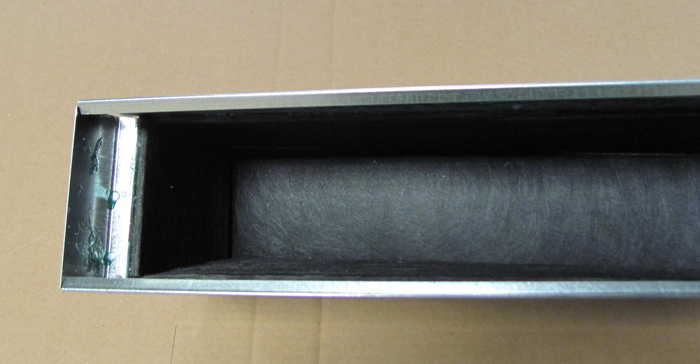

Experience shows that it is cost effective for the contractor to have the plenums lined with 1/4" mat
and then wrap the plenum in the field in order to better meet his local codes.
We offer conventional duct liner as well as closed cell insulation.
As a rule of thumb duct liner ...
